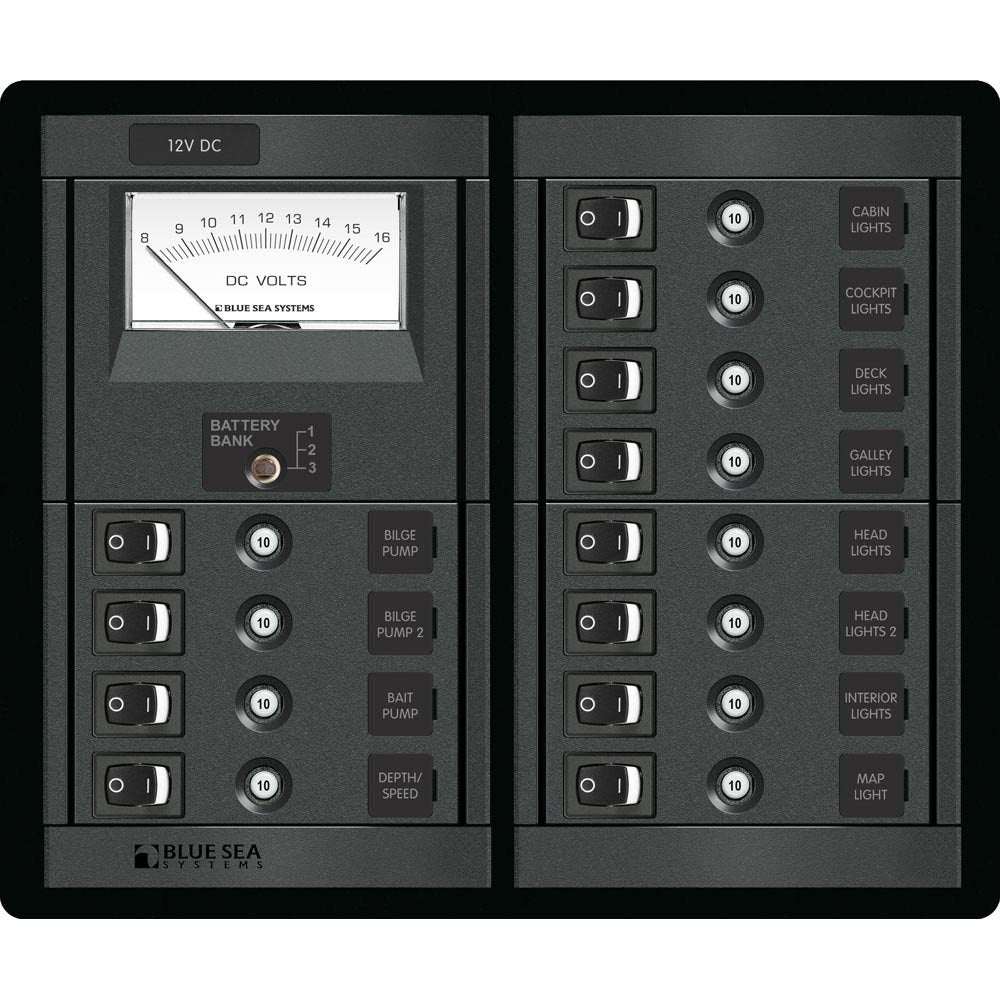

Blue Sea 1464 12 Position Switch CLB + Meter Square

12 Position Switch CLB + Meter SquareFeatures:

• Available with voltmeters and ammeters
• Panels with meters include a toggle switch to monitor voltage on up to three battery banks
• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12
• Nominal Voltage: 12V DC
• Maximum Amperage*: 120A
• Height: 7.75" (196.85mm)
• Width: 9.25" (234.95mm)
• Depth: 3.50" (88.9mm)
• Weight: 4.29lb (1.95kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.Includes:(12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps(12) - 7480 - Rocker Switch SPST - ON-OFF(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL](1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

360 Panel SystemProvides circuit protection and switching in a compact and economical panel12 branch 10A push to reset circuit breakers and 12 10A SPST ON/OFF switches, 1 DC Analog VoltmeterDoes not include backlighting or On indicationIncludes 4205-Square Format Label Set
