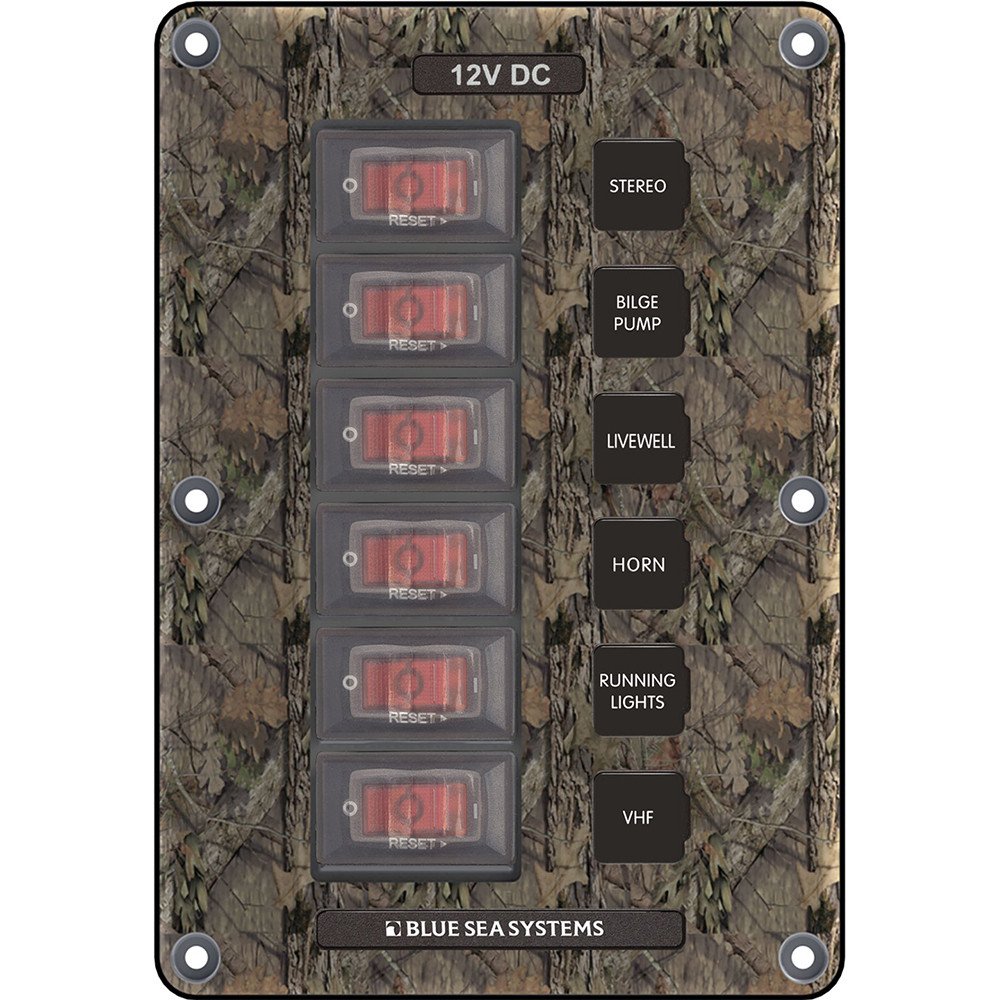

Blue Sea 4325 Circuit Breaker Switch Panel 6 Position - Camo

4325 Circuit Breaker Switch Panel 6 Position - Camo

Designed for exposed mounting applications.

Features:

• Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
• Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
• Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
• Silicon breaker boots and gasket protects against water ingress
• Low profle makes it easy to install in tight spaces
• Fast-on circuit breaker connectors make it quick to wire
• Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

• Color: Camo
• Positions: 6
• Nominal Voltage: 12 VDC
• Maximum Amperage: 45A
• Terminal Type: 1/4" Male Quick Connect
• Hardware: Stainless Steel #6 x 5/8" mounting screws
• Ring Terminal Size: M5 (#10)

Blue Sea Systems Water-Resistant Circuit Breaker Panel, 6 Positions, Camo. Nominal Voltage: 12V DC, Max Operating Amperage: 45A, Terminal Type: 1/4" Male Quick Connect, Hardware: Stainless Steel #6 x 5/8" mounting screws, Ring Terminal Size: M5 (#10).Illuminated 15A circuit breakers provide switching, ON indication and overcurrent protectionIndustry-standard sizes and mounting allow these panels to be easily retrofitted in an existing applicationPolycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrodeSilicon breaker boots and gasket protects against water ingress. Panel front is IP66 when mounted with gasket in place - protected against powerful water jets (see inside back cover).Fit type: Universal Fit
