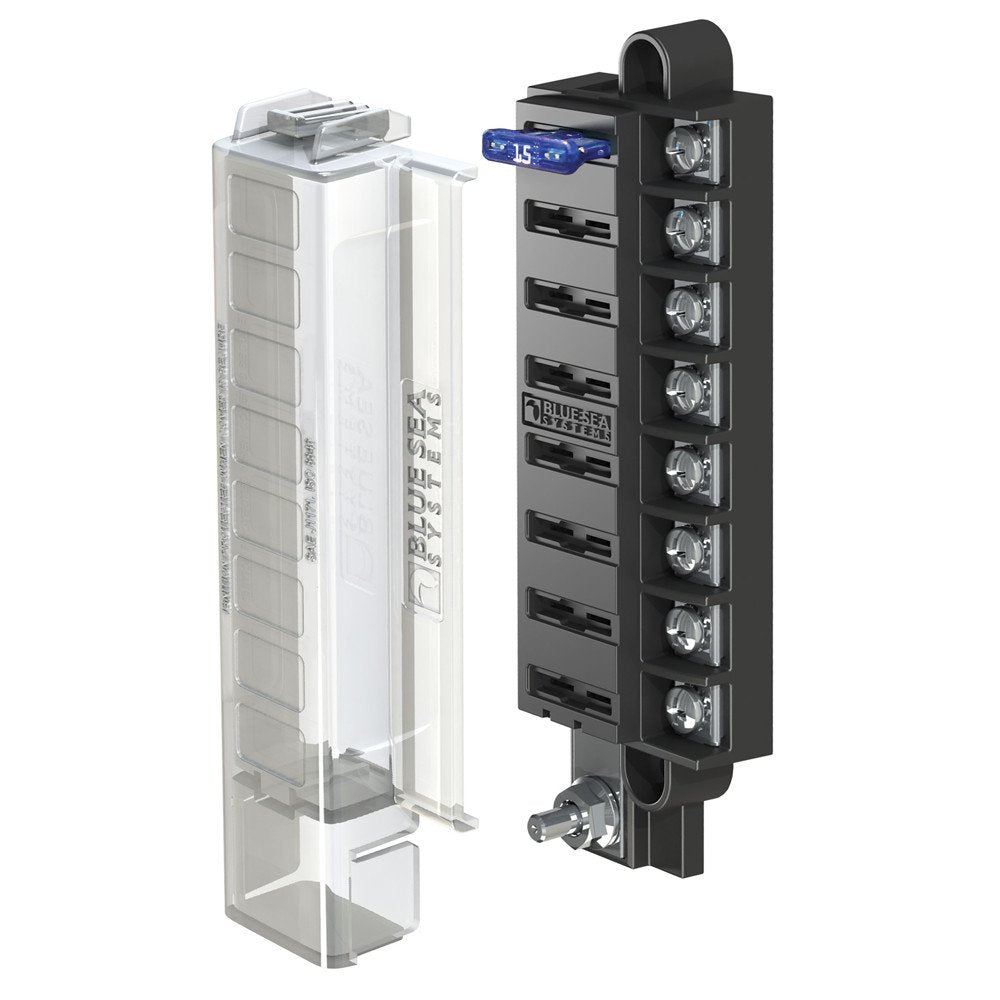

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

ST Blade Compact Fuse Blocks - 8 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block
• Accepts ATO® and ATC® fast acting blade fuses
• Single side entry wiring
• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Small format standard and custom labels available

Specifications

• Circuits:8
• Maximum Amperage: 100A per block / 30A per circuit
• Maximum Voltage:32V DC
• Mounting: #8 Screw (M4)
• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Provides surface mount circuit protection for 8 ATO/ATC fuses in a compact footprintCommon source: one wire powers the entire fuse Block. Single side design allows wire entry from one side to minimize footprintIgnition protected when cover is secure -meets ISO 8846 and sae J1171 for Use in a gasoline engine compartmentTin-plated Copper buses and fuse clips. Stainless steel #8-32 screws with captive Star lock washer accommodate ring or snap fork type terminals
