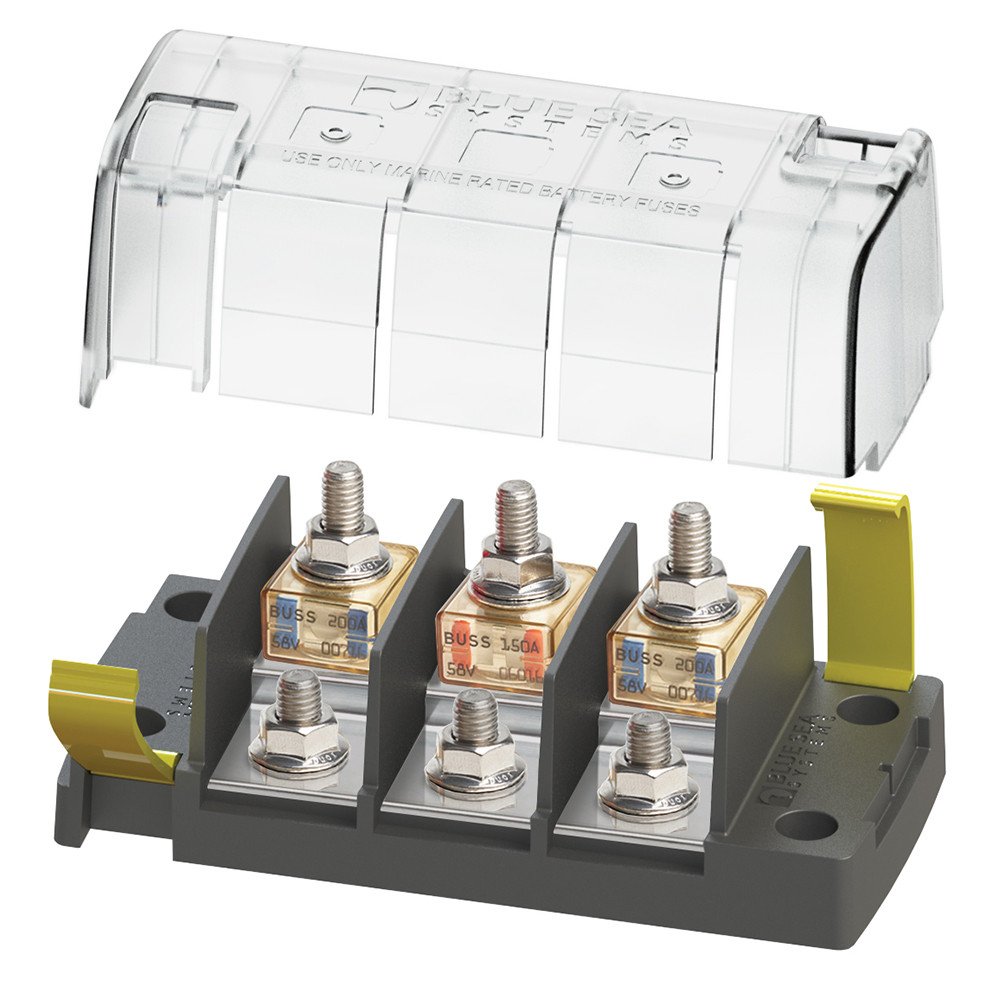

Blue Sea 5194 MRBF Surface Mount 3 Circuit Fuse Block - Independent Source

Surface Mount 3 Circuit Fuse Block - Independent Source

• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
• The independent source fuse block (5194) is ideal for 3 output battery chargers
• The common source fuse block (5196) provides 3 loads from a single source
• Clip-on cover insulates terminal connections
• Versatile wiring options allow all wires to come out a single side
• Label recesses for easy circuit identification
• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Ignition Protected: Yes
• Maximum Amperage: 240 per circuit
• Maximum Voltage: 58v DC
• Maximum Torque: 100 in-lb
• Terminal Stud Size: M8 (5/16"-18)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Voltage Max Operating: 58V DC, Amps Max Operating: 300A per block, Terminal Fuses Avail.: 30A-300A, Terminal Stud Size: 5/16"-18 (8mm), Mounting Hole Size: #10 (5mm)Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protectionIdeal for 3 output battery chargersClip-on insulating cover satisfies ABYC/USCG insulation requirementsVersatile wiring options allow all wires to come out a single side.Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification.One-piece stainless flange nuts ensure safe and secure connections.Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse.Fuses sold separately
