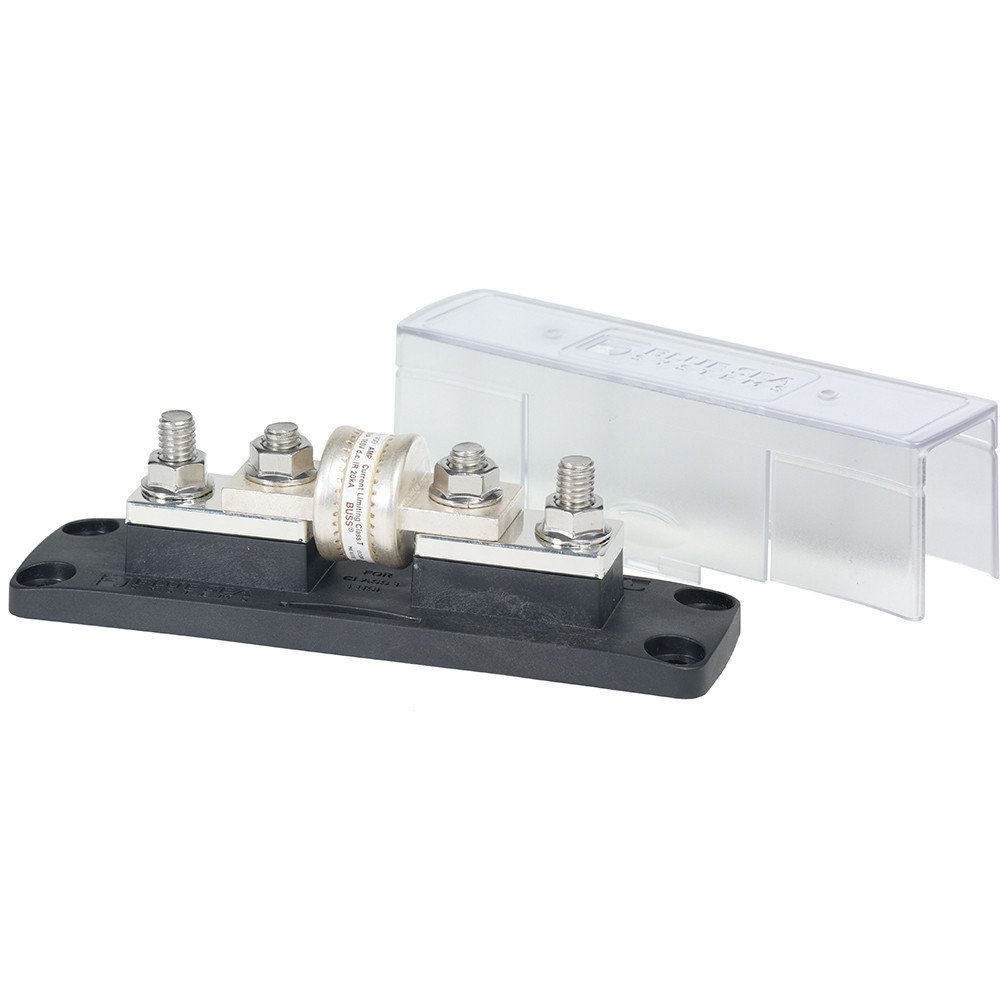

Blue Sea 5502 Fuse Block Class T 225-400 Amp

Fuse Block Class T 225-400 AMPPart #: 5502Features:

• Maximum Voltage: 160 Volts DC
• Maximum Amperage: 400 Amperes DC
• Maximum Torque: 190 in-lb (21.47 Nm) max.
• Terminal Stud Size: 3/8"-16 (M10)
• Mounting Holes: Accept 1/4" (M6) Screw
• Maximum Cable Size 4/0 AWG
• Fuse Mounting Blocks: Tin-Plated Copper
• Class T Fuses Available: 110-400 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Voltage Max. Operating: 160V DC, Amps Max. Operating: 320A, Class T Fuses: 225A-400A, Mounting: 1/4" (M6) Screws, Terminal Stud Size: 3/8"-16 (M10)Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuseInsulating cover satisfies ABYC/USCG insulation requirementsCover breakouts allow wire access in any directionStud design ensures secure fuse mounting even with high heatStainless steel studs provide resistance to corrosion and high torqueOne-piece stainless flange nuts ensure safe and secure connections
