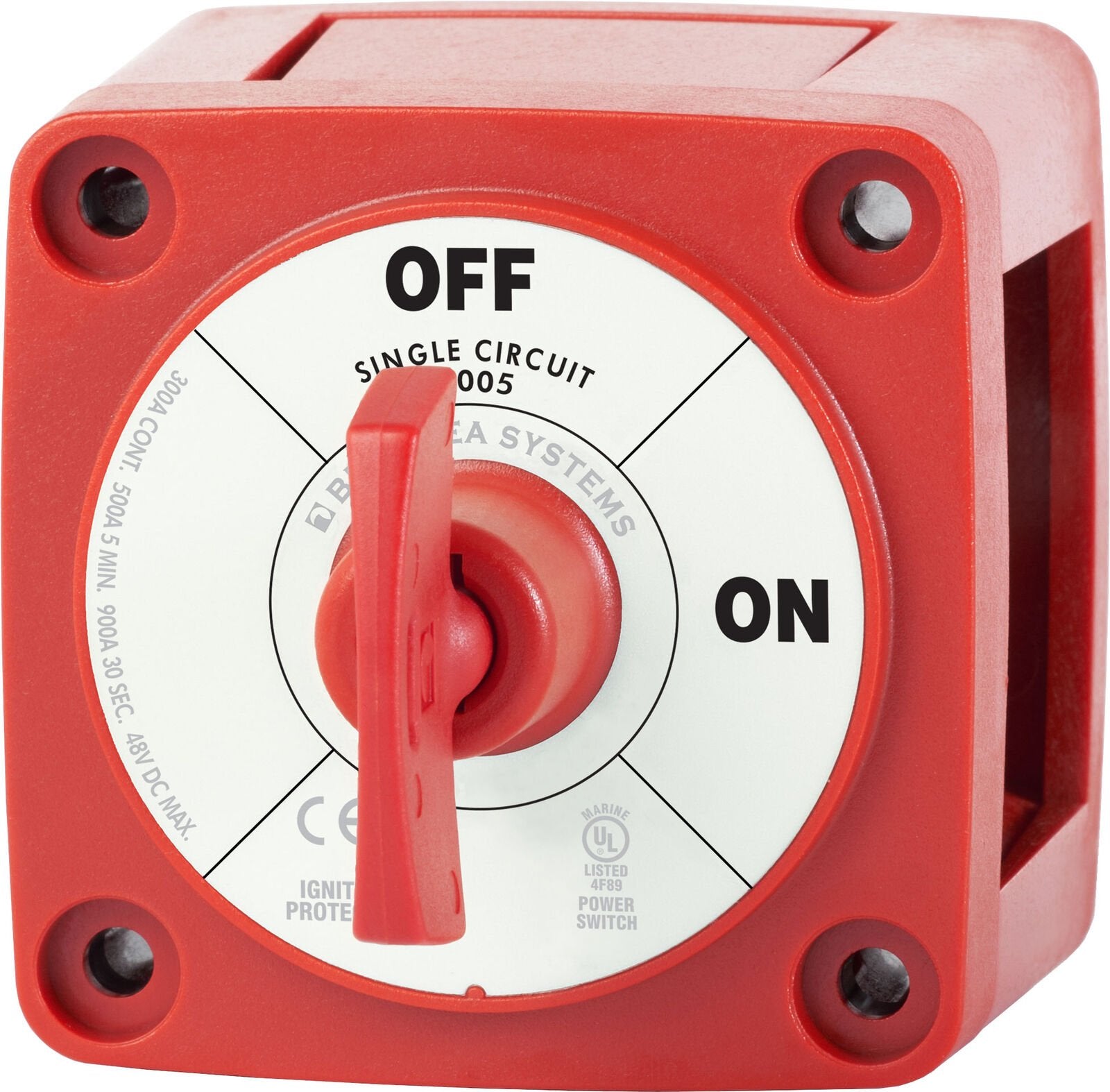

Blue Sea 6005 m-Series (Mini) Battery Switch Single Circuit ON/OFF
Blue Sea 6005 m-Series (Mini) Battery Switch Single Circuit ON/OFF
Couldn't load pickup availability
6005m-Series (Mini) Battery SwitchSingle Circuit ON/OFF Switches a single battery to a single load group Multiple switches can be used to manage several isolated circuits including cross connecting for emergency paralleling Features: Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Ideal for marine or RV applications All non-corrosive marine grade metals Molded in durable reinforced polycarbonate Tactile textures indicate knob position by feel only Label with international ON/OFF legends Removable key or knob remains positively retained ICON label set included for circuit identification Specifications: Amps - Max: 700 Positions: 1 Lockable: Yes Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs UPC: 632085060053 Owner's Manual (pdf)
Features- Blue Sea Systems
