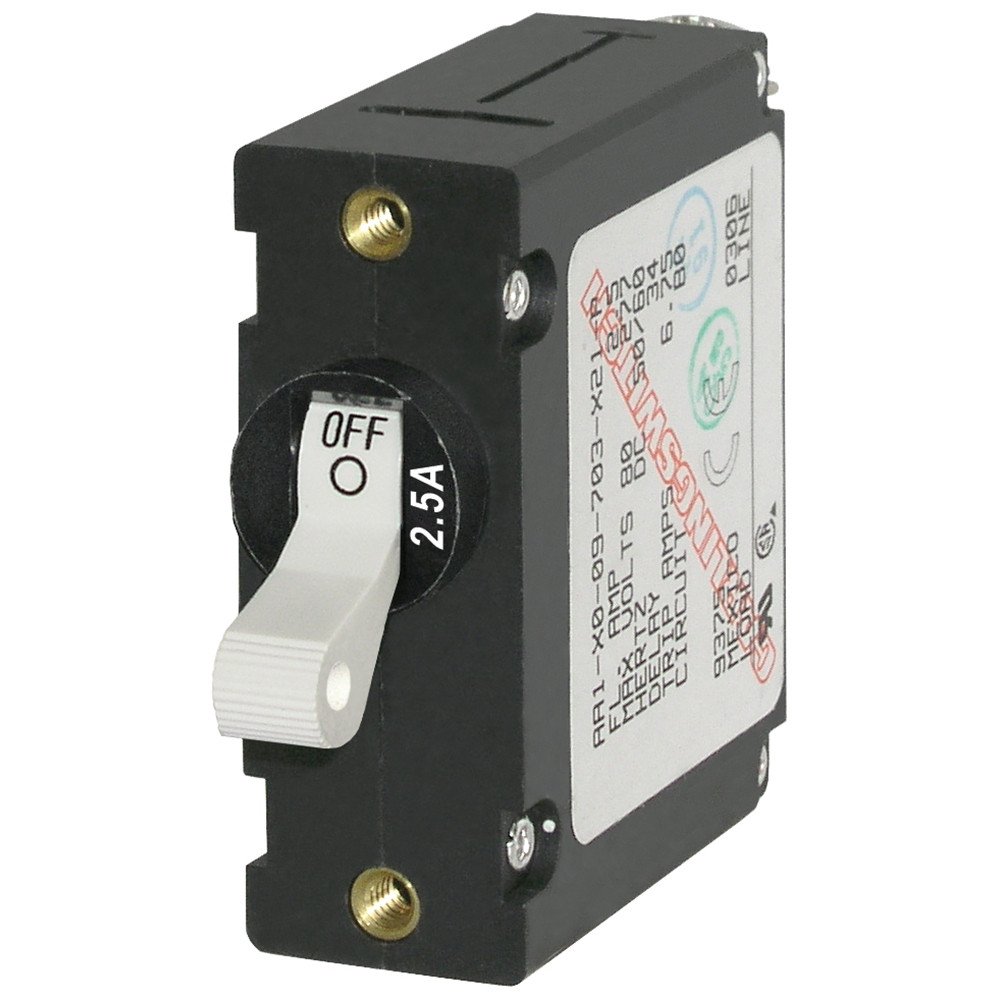

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

A-Series White Toggle Circuit Breaker - Single Pole 2.5A

• Meets American Boat and Yacht Council (ABYC) standards
• The industry standard circuit breaker for Blue Sea Systems" electrical panels
• Combines swtiching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

Specifications:

• Amperage: 2.5A AC / 2.5A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 250V AC / 65V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.17lb (0.08 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Meets American Boat and Yacht Council (ABYC) standardsThe industry standard circuit breaker for Blue Sea Systems" electrical panelsCombines switching and circuit protection into a single device"Trip Free" design cannot be held "ON" during fault current condition
