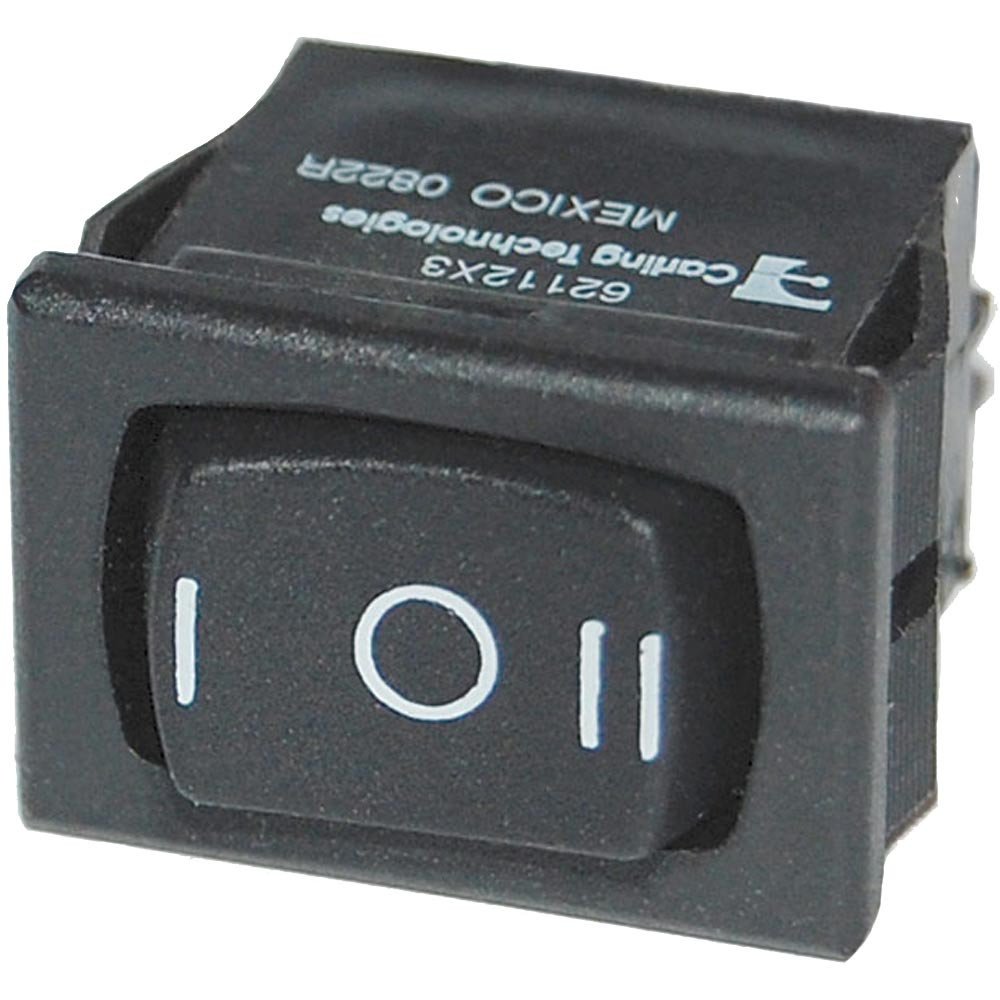

Blue Sea 7492 360 Panel - Rocker Switch DPDT - ON-OFF-ON

360 Panel - Rocker Switch DPDT - ON-OFF-ONFor use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery ManagementThe 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.Specifications:

• Action*: ON-OFF-ON
• Pole/Throw**: DPDT
• Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC
• Terminal Type: Wire Leads
• Terminal Size: 6.00" (152.4mm)
• Weight:0.08lb (0.04kg)

*Action () = Momentary ON**Pole/Throw: SPST - Single Pole/Single ThrowSPDT - Single Pole/Double ThrowDPST - Double Pole/Single ThrowDPDT - Double Pole/Double Throw***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Terminal Type: Wire Leads, Max Amp: 5A @ 12V DC, 5A @ 24V DC, 8A @ 125V AC, 4A @250V ACFor use in 360 panels in the following modules: Gauge, DC Push Button + Switch and DC Battery ManagementWings hold switch into panel without additional hardwareAction: (On)-Off. () = MomentaryCombines switching and circuit protection into a single device
