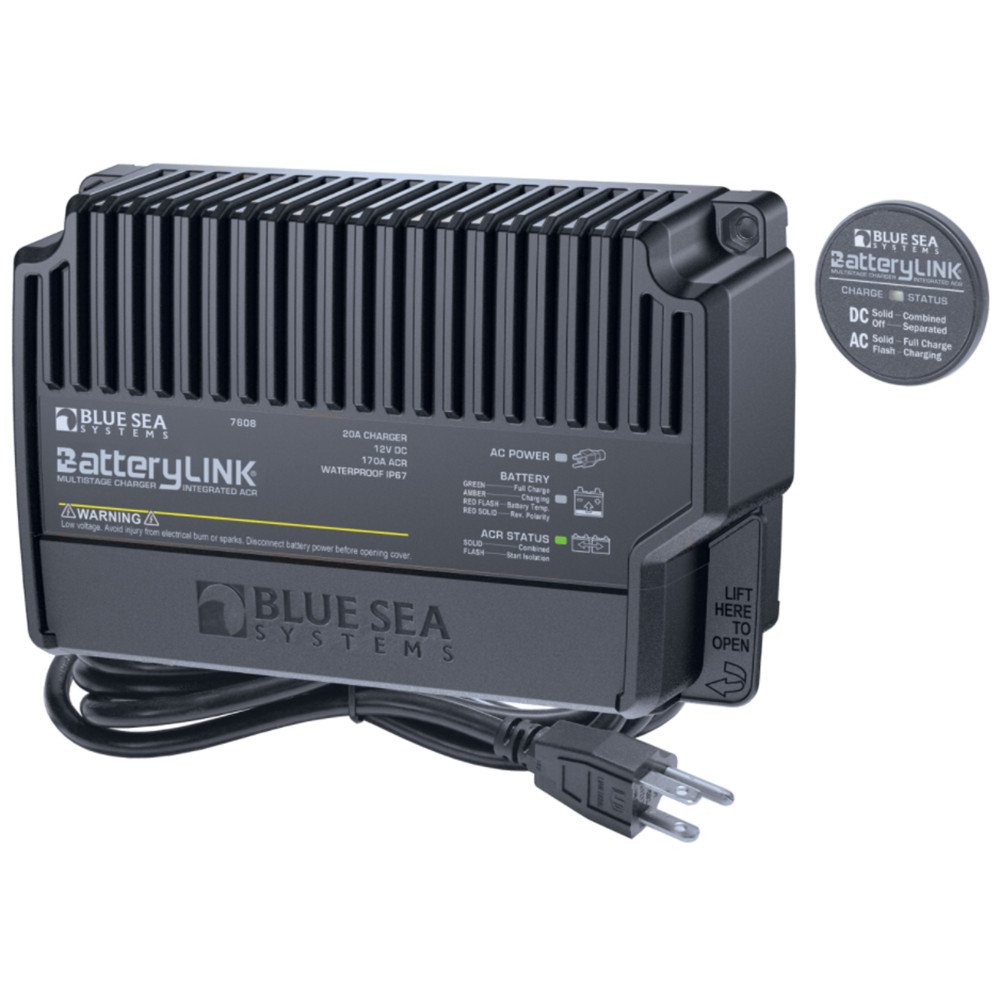

Blue Sea 7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank

7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank

Charge at or away from the Dock

• Compact 12V 20A – 2 Bank AC Charger
• 170A Continuous ACR
• Remote Emergency Jump Start
• Battery Temperature Compensation
• Remote Display Included
• IP67 Waterproof

Specifications:

• Total Output Current: 20A
• Nominal Voltage: 12V DC
• Number of Outputs: 1 Negative/2 Positive
• Terminal Stud Torque: 60 in-lb (6.78 Nm)
• Continuous Rating: 65A
• Intermittent Rating: 115A
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 50/60Hz
• Typical Float Voltage: 13.5V DC
• Battery Types: AGM/Flooded/TPPL
• Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
• Maximum Battery CCA: 850CCA
• Maximum Cable Size: 1/0 AWG (50mm)
• Operating Current: 10mA/60mA
• Plug Style: North American: NEMA 5-15P
• Recommended Battery Bank Sizes: 60Ah Minimum
• Terminal Stud Size: 1/4"-20
• Warranty: 5 Year
• Combine 30 sec: 13.5V
• Combine 2 Min: 13.0V
• Open 10 sec: 12.35V
• Open 30 sec: 12.75V

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Output Current: 20A DC, Nominal Output Volts: 12V DC, ACR Continuous Rating: 170A, Output Connections: 1 Neg. & 2 Pos., AC Input Volts: 100-240V, AC Input Freq.: 50/60Hz, Typical Float Volts: 13.5V DC, Typical Absorption Volts: 14.4V DC, Operating Current (no AC power): 10mA, ACR Combine Volts: 13.0V (2 min.) & 13.5V (30 sec.), ACR Open Volts: 12.75V (30 sec.) & 12.35V if volts is risingPlug Style: NEMA 5-15P, Battery Types: AGM & Flooded & TPPL, Recommended Minimum Battery Capacity: 100Ah (20h rate) per bank, Recommended Maximum Battery Capacity: 400Ah (20h rate) total of both banksAC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 20 Amp battery chargerDC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACRBattery Temperature Compensation prolongs battery lifeStart isolation protects sensitive electronics from voltage sags and spikesEmergency parallel allows remote ability to jump start by combining both batteries if start battery is low
