Blue Sea Remote Battery Switch w/Manual Control Auto-Release - 24V

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V

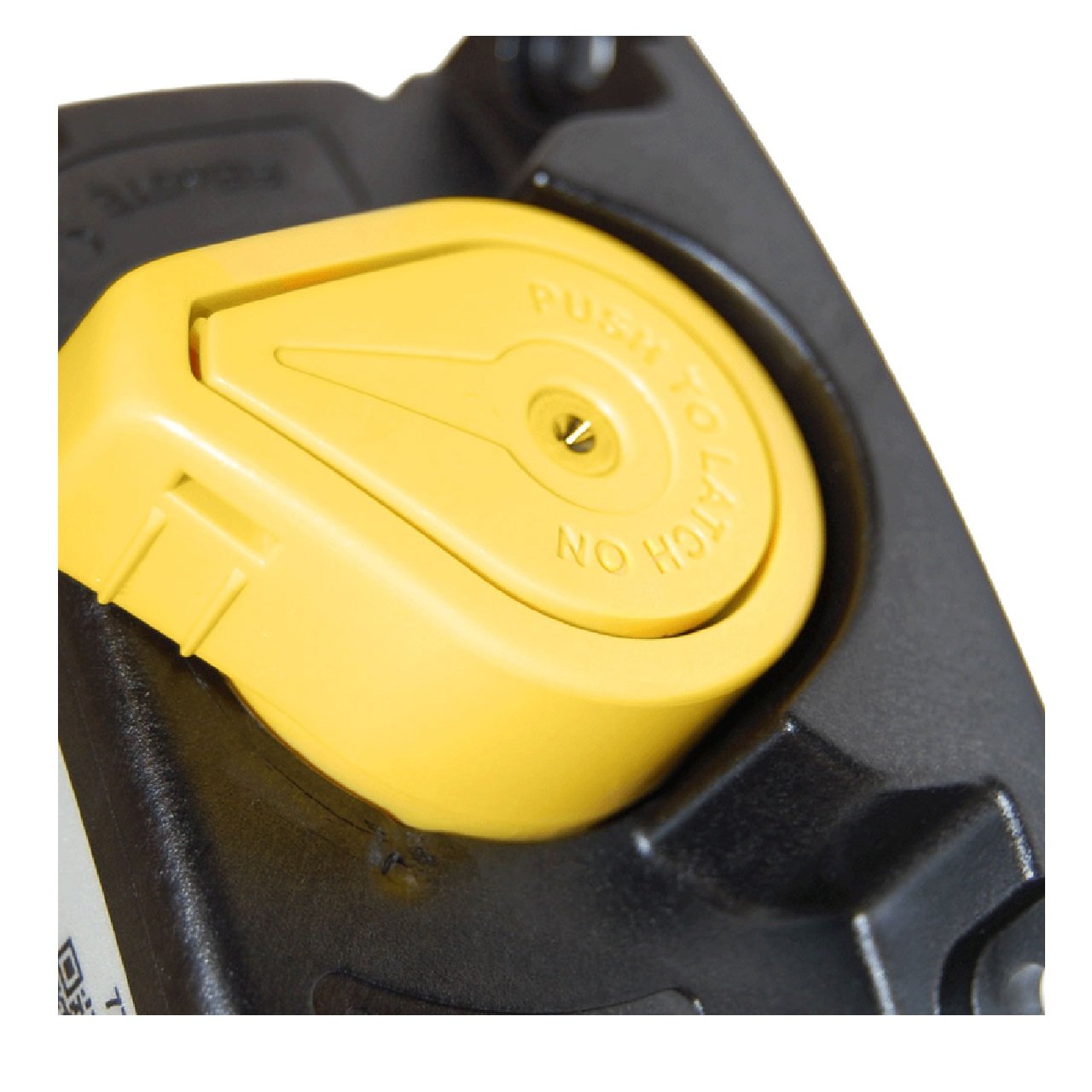

Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

LED output to remotely indicate switch state - requires optional LED

3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

7/ 8" (22mm) stud length accepts multiple cable terminals

Label recesses for circuit identification

Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications

Control Circuit Connection:Tinned Wire

Nominal Voltage:24V DC

Manual Control: Yes

Coil Function: Auto releasing

Mounting: #10

Amperage Operating Current:8mA when OFF/13mA when ON

Amperage Operating Current when changing state: 4A (40 ms)

Control Circuit Voltage: 20.2 to 32.9V DC

Continuous Rating: 500A

Intermittent Rating: 700A (5 min)

Cranking Rating: 10 sec 2500A

Cranking Rating: 1 min 1100A

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 50° C

Cable Size to Meet Ratings: 2x (4/0)

Live Current Switching: 300A @ 12V DC 10,000 Cycles

Master Control Switch Capability: Yes

Mechanical Endurance: 100,000 Cycles

Switching Cycles: 100000

Terminal Ring Diameter Clearance: 1.18" (29.97mm)

Terminal Stud Length: 0.875" (22.23mm)

Terminal Stud Size: 3/8-16 (M10)

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Weight: 1.75lb (0.79 kg)
