Echonautics Transducer 1kW Medium CHIRP 0° Tilted Element

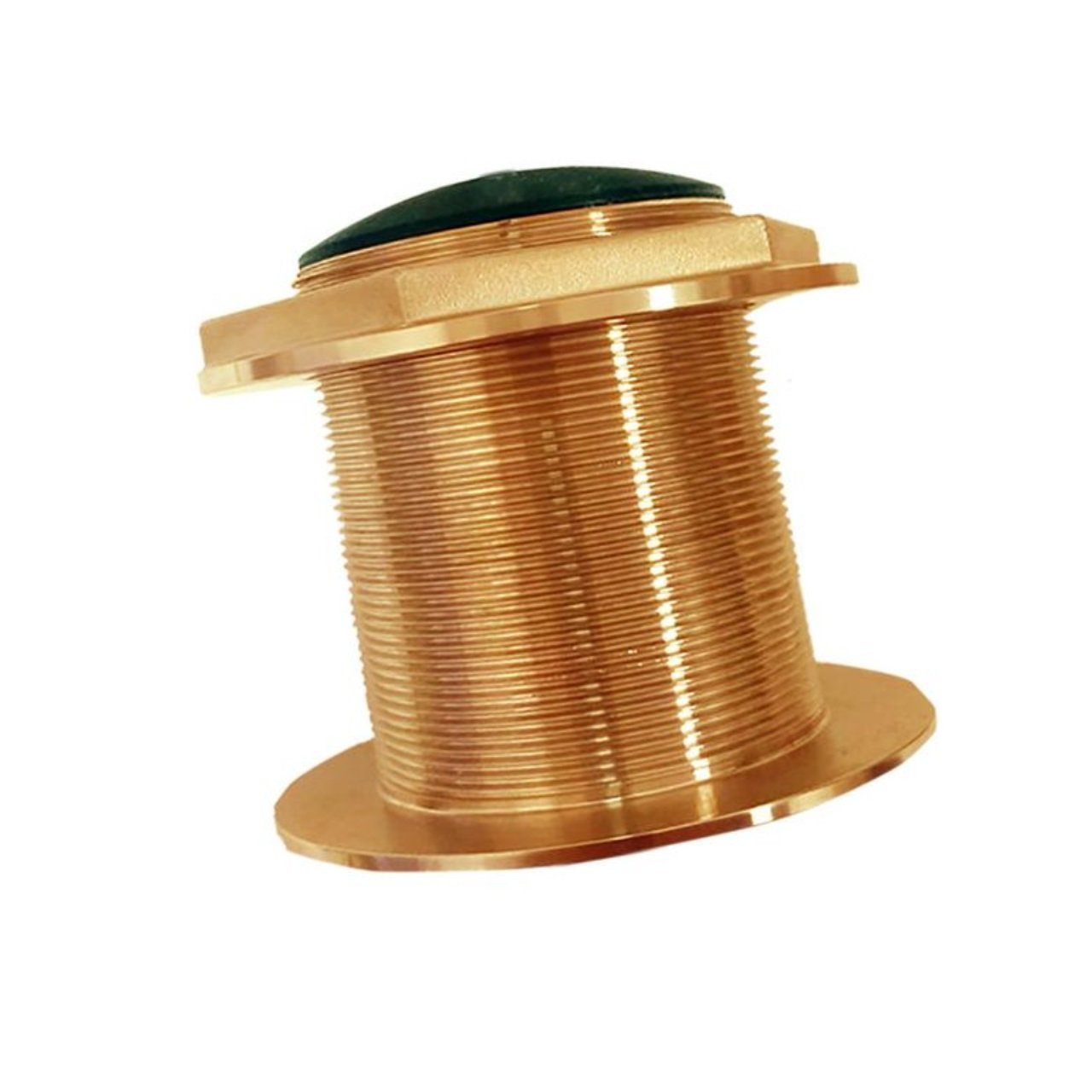

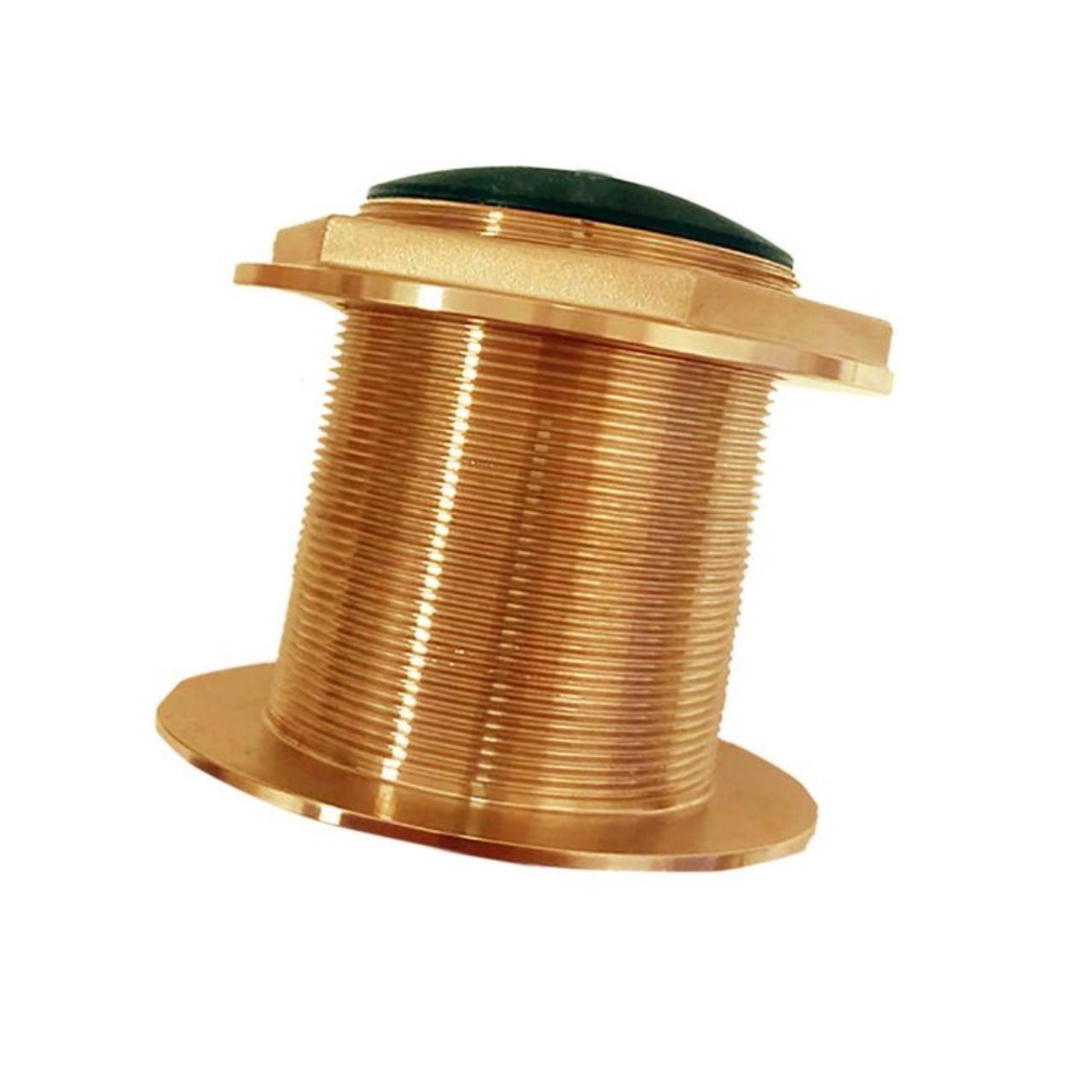

Echonautics BT87M1KW 85-135kHz 1kW Medium CHIRP 0° Tilted Element Model: BT87M1KW-00 • Superior shallow-water performance and bottom detail The Echonautics BT87H1kW is a low-profile thru hull CHIRP transducer designed to minimize drag and to perform at high speeds. Thanks to the narrow beamwidth, it is excellent for pinpointing fish holding tight to reefs, wrecks, and other structures. Specifications • Function Depth and Temperature • Frequency CHIRP 85 - 135 kHz • Tilt/deadrise 0° tilted version: for 0° to 7° hull deadrise • Material Bronze • RMS Power 1 kW • Hole diameter 87.6 mm (3.45") • Cable length 9 m (30 ft) • Temp. sensor NTC • Acoustic window Urethane

• CHIRP 85-135 kHz frequency for superior depth detail and fish detection with narrow beamwidth for pinpointing fish around structures
• 1 kW RMS power with low-profile thru-hull design minimizes drag for high-speed boating applications
• 0° tilted element designed for 0° to 7° hull deadrise compatibility
• Bronze construction with urethane acoustic window for durability and corrosion resistance in saltwater environments
• 30 ft (9 m) cable length with integrated NTC temperature sensor for depth and water temperature monitoring
