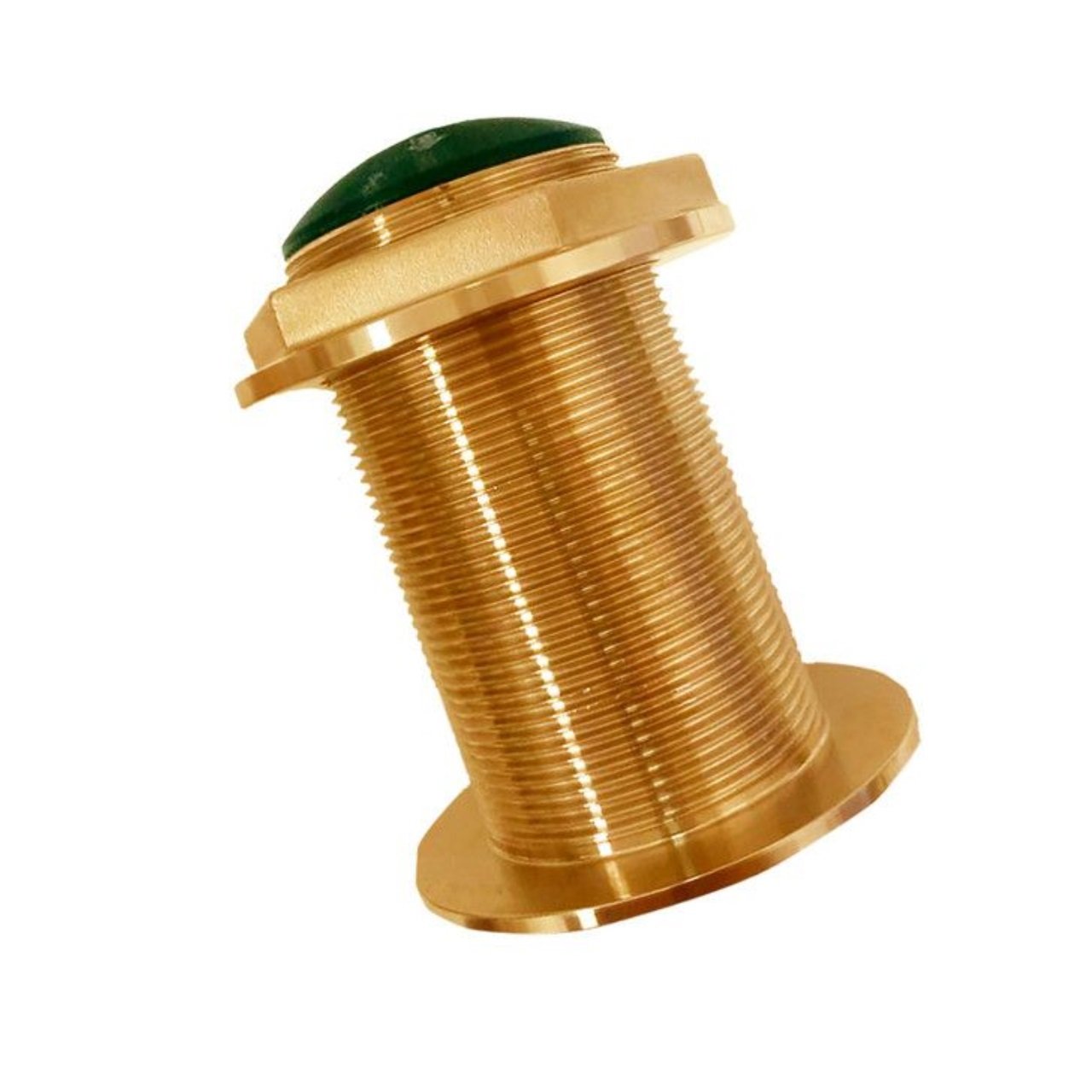

Echonautics Transducer 50/200kHz Bronze Thru-Hull with 18 degree Tilted Element

Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 18 degree Tilted Element Model: BT70D600-18 Get target detail in shallow water and good deep-water bottom tracking. this series is designed to minimize drag and to perform at high speeds. Specifications • Function Depth and temperature • Frequency 50/200kHz • Mount type Thru-hull • Tilt/deadrise 18° tilted for 16° to 24° hull deadrises • Material Bronze • RMS Power 600 watts • Beamwidth 42° / 11° -3db • Depth Max@50kHz = 1200ft • Max at 200kHz = 700ft • Temp sensor NTC • Acoustic window Urethane • Weight 54oz • Cable length 27ft • Hole diameter 2.38"

• Dual frequency 50/200kHz transducer for superior target detail in shallow water and excellent deep-water bottom tracking
• Bronze thru-hull construction with 18° tilted element, compatible with 16°-24° hull deadrise angles
• 600W RMS power with 42°/11° beamwidth (-3dB) for detailed sonar imaging and accurate depth readings
• Maximum depth: 1200ft @ 50kHz, 700ft @ 200kHz; integrated NTC temperature sensor
• Streamlined design minimizes drag and performs reliably at high boat speeds
• 27ft cable with urethane acoustic window; 54oz weight; 2.38" hole diameter for standard thru-hull installation
