Garmin GNX™ Wireless Sail Pack

GNX™ Wireless Sail PackThe Information You Need to Make Confident Decisions

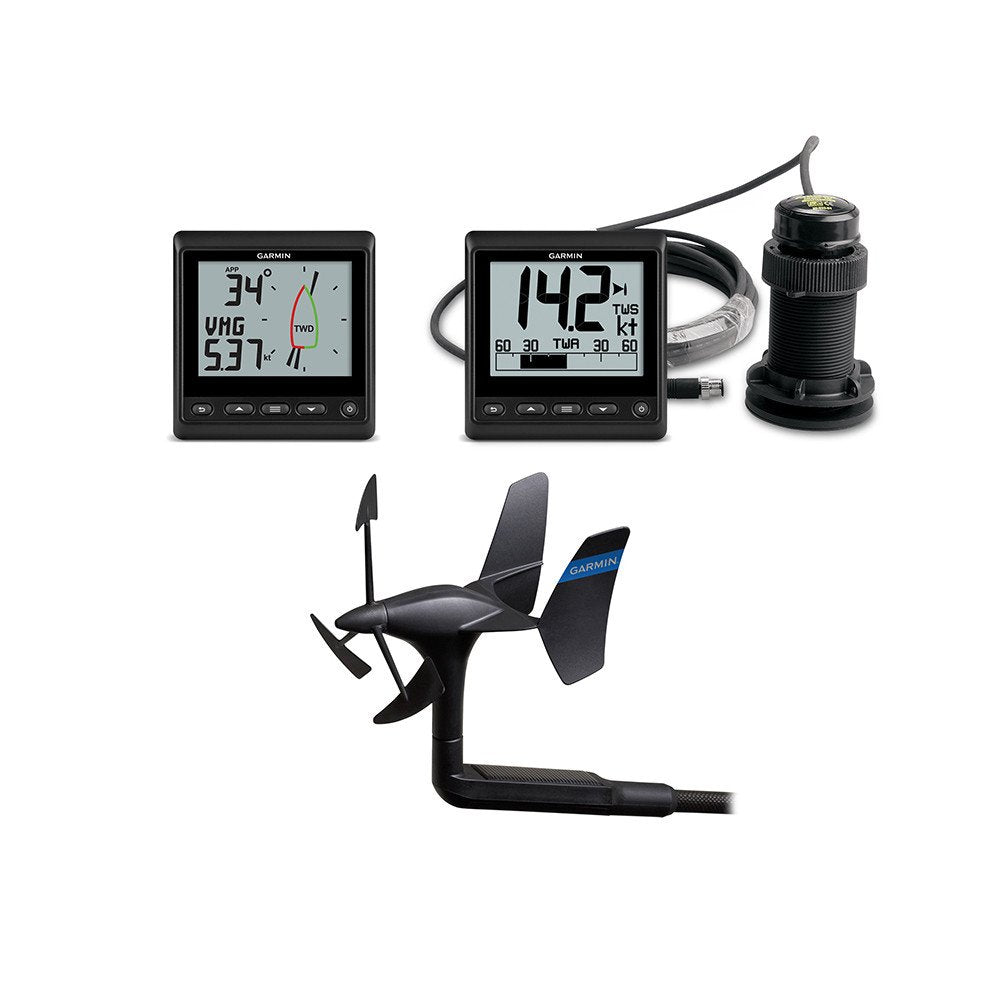

• Includes Garmin GNX™ Wind and GNX 20 marine instruments, gWind™ Wireless 2 transducer and DST800 thru-hull smart transducer
• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
• gWind Wireless 2 transducer eliminates running wires through masts up to 50'
• DST800 transducer provides water depth, water speed and water temperature data
• Easy plug-and-play installation with NMEA 2000® network

With a GNX Wireless Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water.GNX Wind InstrumentGNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000® network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT® technology to stream wind data directly to your wrist. Specifications:

• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60mm; 101.6mm diagonal)
• Weight: 8oz (230g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35W (day); 0.4W (night)
• Voltage range: 9-16V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158°F (from -15 to 70°C)
• Compass-safe distance: 8.25" (209mm)

Wind Wireless 2 TransducerWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP® chartplotter. The transducer features renowned Nexus® twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions. Also available in a wide selection of Wind and Sail Packs (sold separately) that can be used as standalone wind systems or expanded to full network systems via NMEA 2000.Specifications:

• Unit Dimension, WxH: 13.6" x 24" (345mm x 610mm)
• Weight: 350g
• Waterproof: Yes (IPX6*)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
• Power Usage: Battery (rechargeable though the solar panel)
• Accuracy Angle: Better than ±1.5°
• Speed: Better than ±3%
• Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
• Wireless Connectivity: Yes

*Protected against heavy seasGNX 20 Marine InstrumentThe easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.Specifications:

• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30mm)
• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60mm; 101.6mm diagonal)
• Weight: 8.0oz (230g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35W (day); 0.4W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158°F (from -15 to 70°C)
• Compass-safe distance: 8.25" (209mm)

DST800 Thru-hull Smart TransducerDST800 provides water depth, water speed and water temperature data to the NMEA 2000 network. This 100W transducer can read depths up to 330'.
