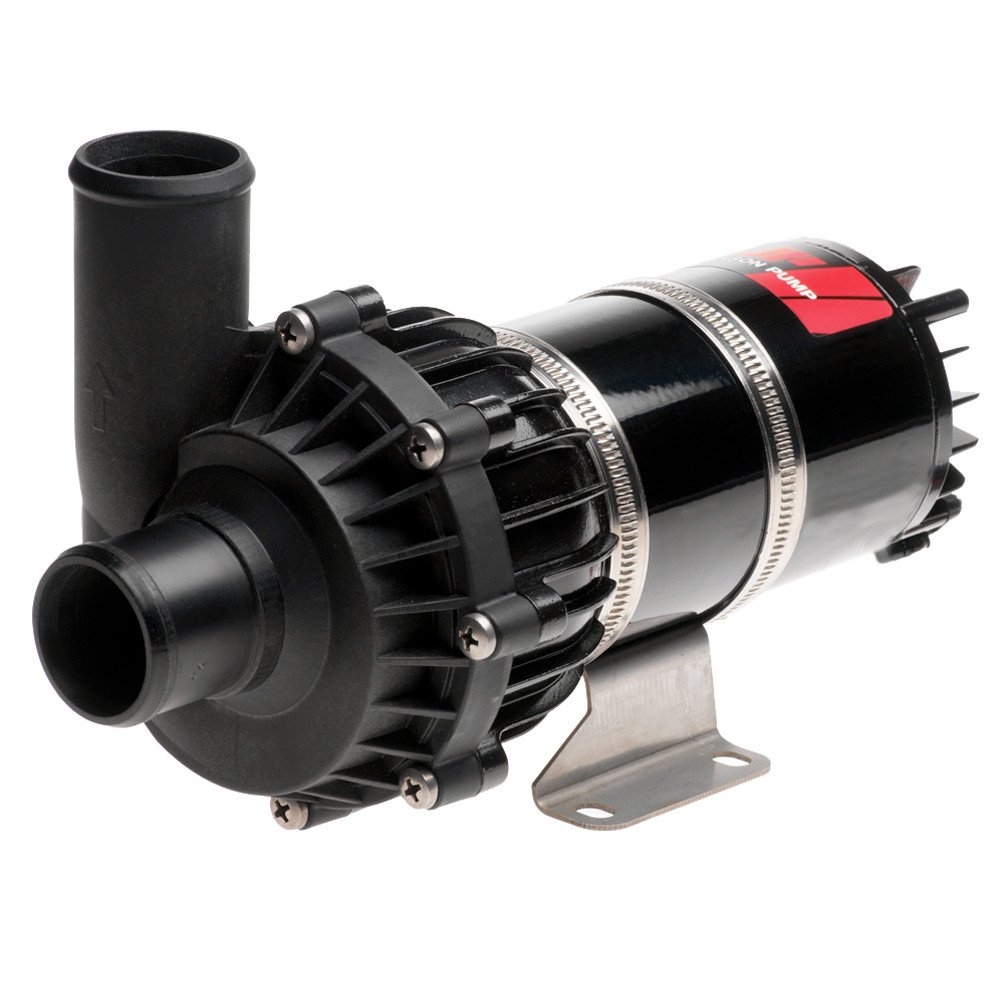

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet

CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet

A line of compact magnetic driven centrifugal pumps which combine high flow

rates with very low electric current consumption. Suitable for fresh water,

ethylene glycol and salt water circulation.

System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar

Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water

Motor Service Life: More than 5,000 hours at nominal voltage 10,000

start/stops. Interchangeable motor.

Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V

DC for use between 20-32V

Input Power: Max. 125W

Dry Running: 30 minutes

Dimensions: 244mm (L) x 120mm (W) x 150mm (H)

Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")

Weight: 3.0kg (6.6lbs)

Body: PPA, glass-fiber reinforced

Mounting: Separate universal bracket for flat surfaces
