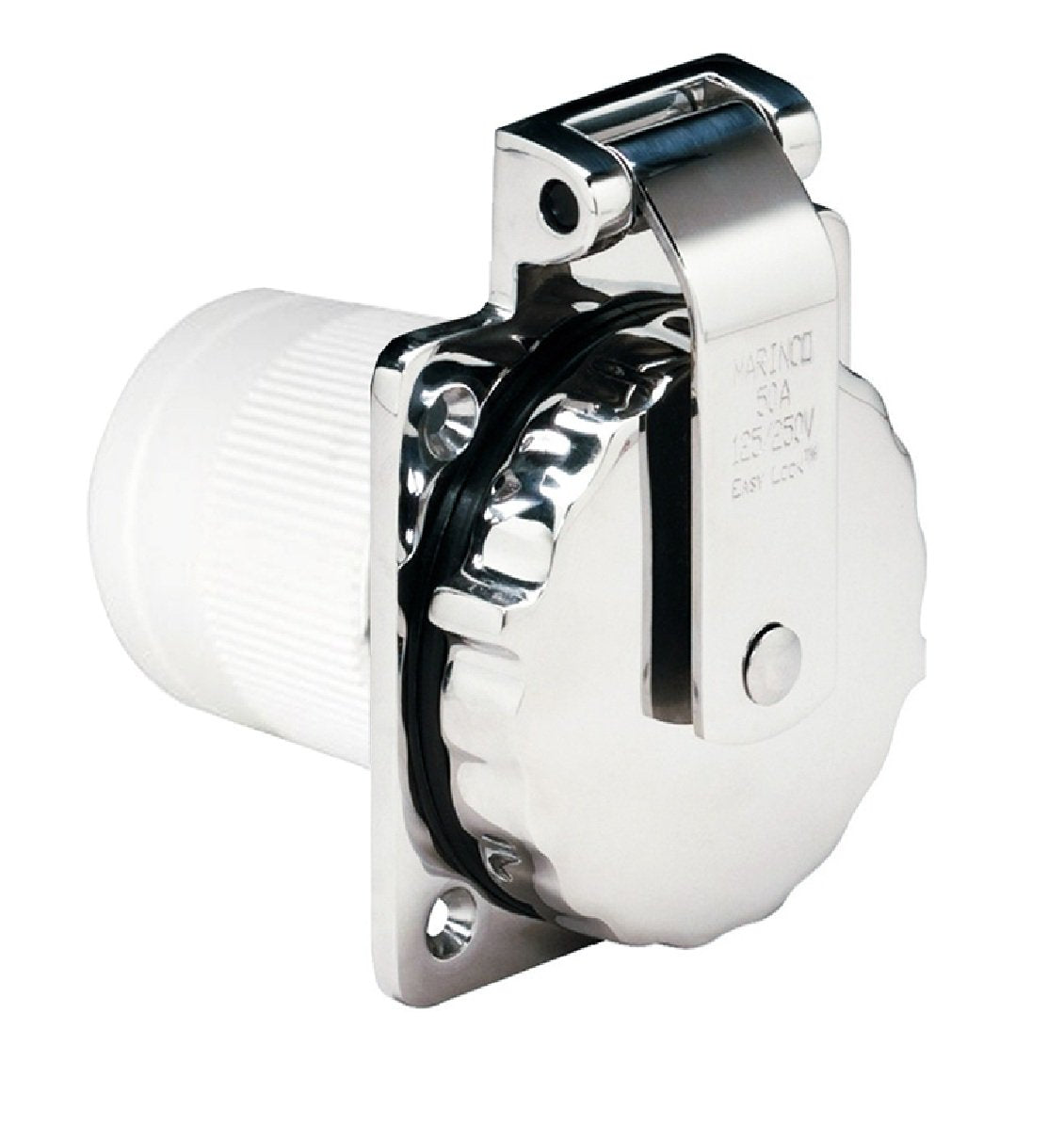

Marinco 50Amp 125/250V Shore Power Stainless Steel Inlet

Marinco® Power Inlets

Easy Lock™ - Marinco's exclusive Easy Lock™ System has been designed to make hook-up quick and easy. Just connect the cordset (with an Easy Lock™ locking ring installed) to the inlet and turn the locking ring less than a quarter turn. The tabs on the locking ring lock into the inlet for a positive watertight hook-up while eliminating any chance of cross threading. The locking ring features lock locators positioned at 180° to improve finger grip during attachment.

Easy Lock™ inlets have a threaded boss that will accept threaded cordsets as well. The Easy Lock™ system is a standard feature on some Marinco® 30 amp and 50 amp inlets and cordsets.

The covers on all Marinco® inlets are designed to stay hinged open when the cover is lifted up. This allows the boater to connect their shore power cord while the cover remains open and out of the way. A soft touch unlocks it for closing.Blades are nickel plated brass for maximum corrosion resistance.

Interior hardware is marine-grade stainless steel.

Rear Enclosure

• • Made of flame-resistant UL94V0 plastic
  • All rear enclosures are glass-filled polyester for strength
  • Integral strain relief complies with ABYC requirements
  • Multiple positions allow for maximum installation flexibility

Easy Lock™ System - Quarter-turn locking mechanism with 180° lock locators for secure, watertight connection without cross-threading risk50 Amp 125/250V dual voltage rating compatible with both threaded and Easy Lock™ cordsets for maximum flexibilityStainless steel interior hardware and nickel-plated brass blades resist corrosion in harsh marine environmentsHinged cover design stays open during connection for convenient hands-free operation with soft-touch closureFlame-resistant UL94V0 rated rear enclosure with glass-filled polyester construction for superior strength and safetyIntegral strain relief with multiple installation positions for flexible mounting on RVs, boats, and marine vessels
