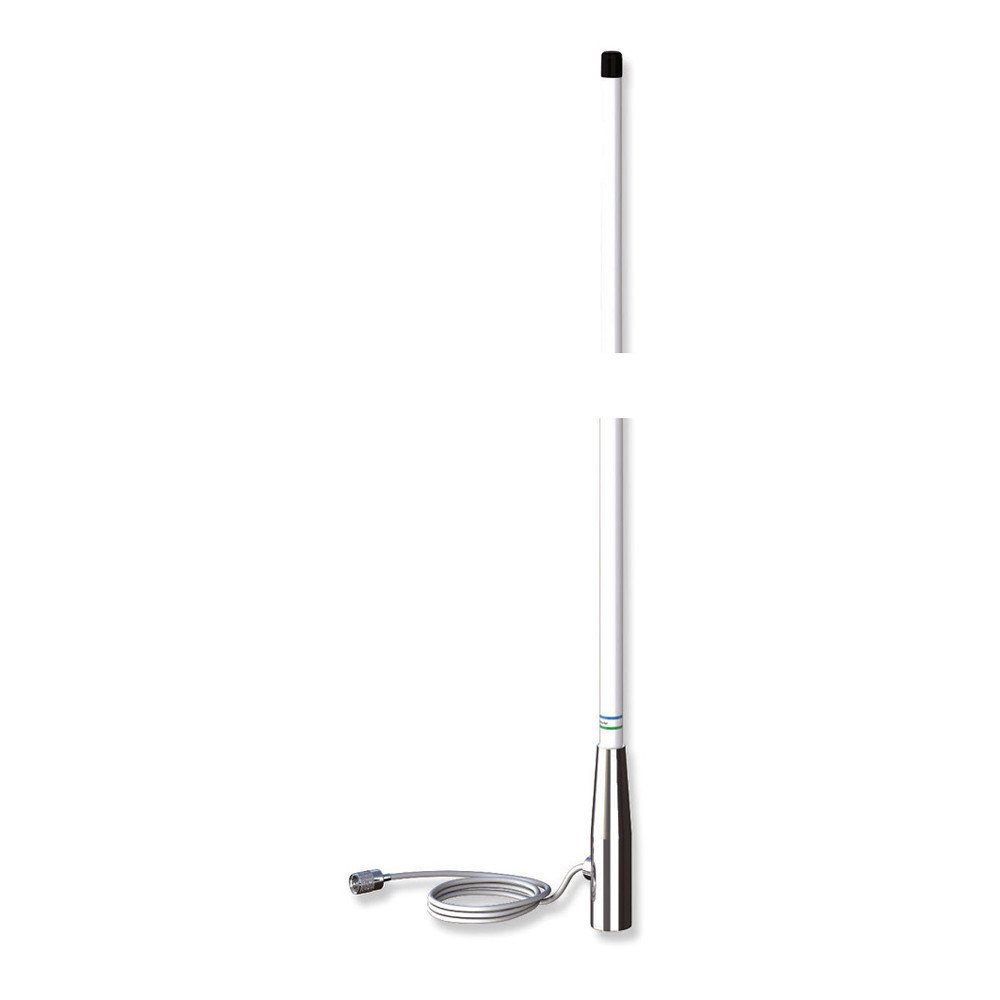

Shakespeare 396-1 5' VHF Antenna

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

• Brass and copper elements
• Chrome-plated brass ferrule with standard 1-14 thread
• Includes 15' RG-58 cable and a PL-259 connector
• Suggested mount: Style 4187 Ratchet Mount
• One section

Technical Specifications:

Frequency:VHF Marine bandBandwidth:(within 2.0:1 SWR): 5 MHzSWR:1.5:1 at 156.8 MHzImpedance(Ohms): 50Gain:3 dBMax Input (Watts):50DC Ground:NOTermination:15' RG-58 cableHeight (feet):5Polarization:VerticalRadiation pattern:Omni-directional
